Cinnamon processing

Cinnamon from Sri Lanka
Cinnamon from Sri Lanka

Cinnamon is a valuable spice that is obtained from the bark of an evergreen tree (Cinnamomum zeylanicum) that belongs to the Laurel family. Cinnamon is native to Sri Lanka, Myanmar (Burma) and the southern coastal strip of India. The crop now grows in South America and the West Indies, the Seychelles and Reunion. The best quality cinnamon is produced in Sri Lanka.

Cassia, which is the bark of the evergreen tree Cinnamomum cassia, is a similar spice to cinnamon but of an inferior quality. It is a native of Myanmar (Burma). Most of the world's cassia comes from China, Indochina, Indonesia, the East and West Indies and Central America. Cassia bark is coarser and less fragrant than cinnamon and is sometimes used as a substitute.

Cinnamon gets its distinctive smell and aroma from a volatile oil that is in the bark. The oil can be distilled from off-grade bark, leaves and roots.

Cinnamon must be dried before it is stored and sold for market. This brief outlines the important steps that should be taken pre-harvest and post-harvest to ensure that the dried cinnamon is of top quality for the market

Cinnamon production

The cinnamon tree is a bushy evergreen tree that is cultivated as low bushes (about 2-3m tall) to make harvesting easier. The bushes grow well in shaded places with an average rainfall and without extremes of temperature. The optimum temperature for production is between 27 and 30°C. The soil should not be waterlogged as this produces a bitter-tasting bark. Eight or ten side branches grow on the bush and these are harvested after about three years to obtain the cinnamon bark.

Harvesting
Cinnamon bark is harvested twice a year immediately after each of the rainy seasons when the humidity makes the bark peel more easily. The trees are first harvested when they are three years old, one year after pruning. The side stems that are about three years old are removed and the bark is stripped off. Cinnamon bark is only obtained from stems that are between 1.2 and 5cm in diameter.

Processing
Processing accounts for about 60% of the cost of production of cinnamon. This is because the peeling of bark from the stems is labour intensive and is usually done by hand, by skilled peelers. The quality of cinnamon depends on how well the bark is removed from the stems. The larger pieces or quills can be sold for more than the smaller broken pieces. The Agricultural Engineering University of Ruhuna in Sri Lanka has developed a small mechanised machine for removing the bark from cinnamon stems. Drying is also an important stage of the processing of cinnamon. It contributes to the quality of the final product.

Processing stages

•     Remove the tender stems (with diameters less than 1.2cm) and use these for mulching.
•     Stems with diameters of less than 5cm are not used to prepare cinnamon bark. Remove these and use for oil distillation.
•     Remove the soft outer bark using a fine rounded rasp knife.
•     Rub the stripped stem with a brass rod to loosen the inner bark. It is important to use a brass rod so that the bark does not become discoloured.
•     Make cuts around the stem at 30cm intervals using a small pointed knife. The knife blade should be stainless steel or brass to prevent staining the bark.
•     Make long cuts along the length of the stem, so that the bark can be carefully eased off the stem. Use the pointed knife and the rubbing rod to help ease off the bark.

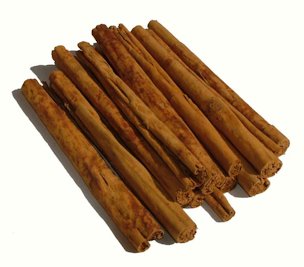

•    The pieces of removed bark are known as quills. Place these curled quills inside one another to make long compound quills (up to 1m long). Use the best whole quills on the outside and fill in the centre with broken pieces of bark.

Drying
The compound quills are placed on coir rope racks and dried in the shade to prevent warping. After four or five days of drying, the quills are rolled on a board to tighten the filling and then placed in subdued sunlight for further drying.

In humid climates or during the rainy season it will be necessary to use a mechanical dryer to complete the drying process. There are a range of dryers available to suit different situations (electrical, gas fired, biomass fuelled). See the Practical Action Technical Brief on drying for further information.

Grading
The quality of cinnamon is judged by the thickness of the bark, the appearance (broken or entire quills) and the aroma and flavour. The Sri Lankan grading system divides the cinnamon quills into four main groups according to diameter.

ClassificationDescriptionMeasurements
1. Quills  AlbaLess than 6mm diameter
ContinentalLess than 16mm diameter
MexicanLess than 19mm diameter
HamburgLess than 32mm diameter
2. QuillingsPieces of bark less than 106mm long
3. FeatheringsInner bark of twigs and twisted shoots
4. ChipsTrimmings of quills, outer and inner bark that cant be separated
5. Powder
6. Leaf oil
7. Bark oilCinnamaldehyde 30-70%

Grinding
Grinding can be a method of adding value to a product. However, it is not advisable to grind spices. After grinding, spices are more vulnerable to spoilage. The flavour and aroma compounds are not stable and will quickly disappear from ground products. The storage life of ground spices is much less than for the whole spices. It is very difficult for the consumer to judge the quality of a ground spice. It is also very easy for unscrupulous processors to contaminate the ground spice by adding other material. Therefore most consumers, from wholesalers to individual customers, prefer to buy whole spices.

Cinnamon is sometimes ground to a powder prior to sale. The ground powder should be packaged in moisture proof packaging (polypropylene bags) to retain the flavour.

Packaging
Cinnamon quills are cut into pieces up to 10cm in length and packed into moisture-proof polypropylene bags for sale. The bags should be sealed to prevent moisture entering. Sealing machines can be used to seal the bags. Attractive labels should be applied to the products. The label needs to contain all relevant product and legal information – the name of the product, brand name (if appropriate), details of the manufacturer (name and address), date of manufacture, expiry date, weight of the contents, added ingredients (if relevant) plus any other information that the country of origin and of import may require (a barcode, producer code and packer code are all extra information that is required in some countries to help trace the product back to its origin). See the Practical Action Technical Brief on labelling for further information on labelling requirements.

Storage
Dried cinnamon quills must be stored in moisture-proof containers away from direct sunlight. The stored cinnamon quills should be inspected regularly for signs of spoilage or moisture. If they have absorbed moisture, they should be re-dried to a moisture content of 10%.

The storage room should be clean, dry, cool and free from pests. Mosquito netting should be fitted on the windows to prevent pests and insects from entering the room. Strong smelling foods, detergents and paints should not be stored in the same room as they will spoil the delicate aroma and flavour of the cinnamon.

Bibliography

Azam-Ali, S. "Cinnamon Processing." Practical Action Technical Brief, Mar. 2007, (CC-BY-SA-4.0), answers.practicalaction.org/our-resources/item/cinnamon-processing/. Accessed 20 Sept. 2022.
